In order to fit your topbox, you will need the specific Givi fitting kit for your bike, and in most cases you will also need a plate.

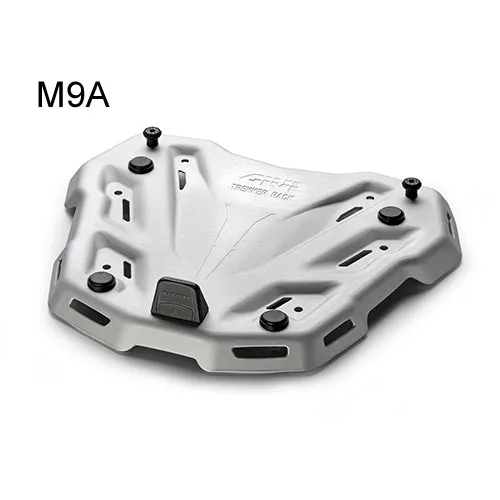

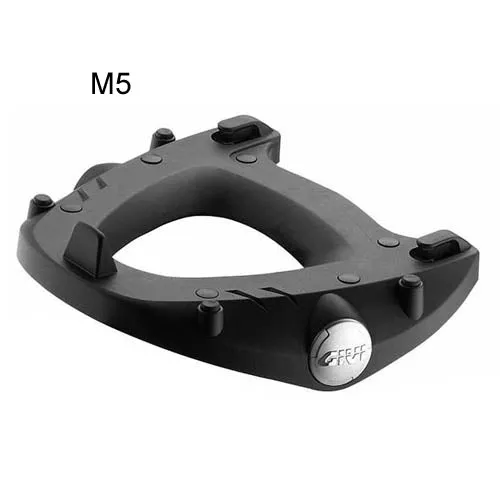

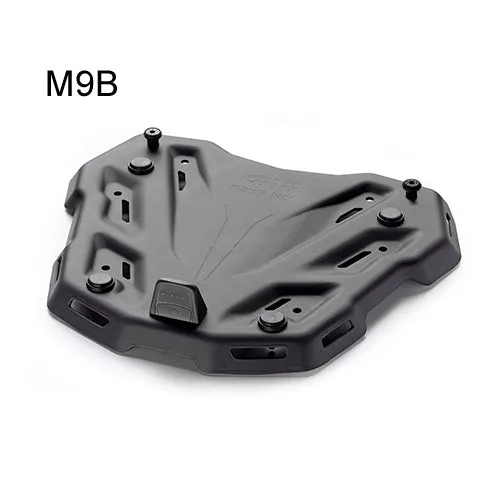

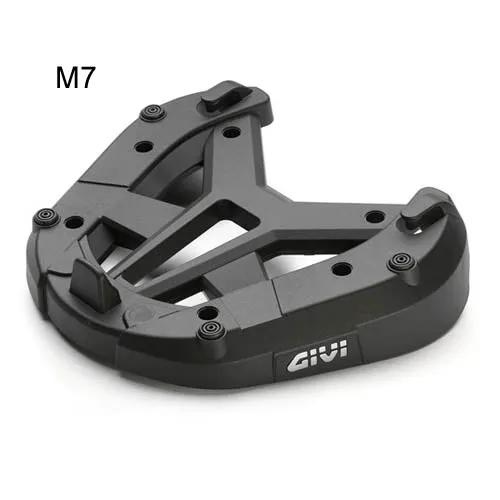

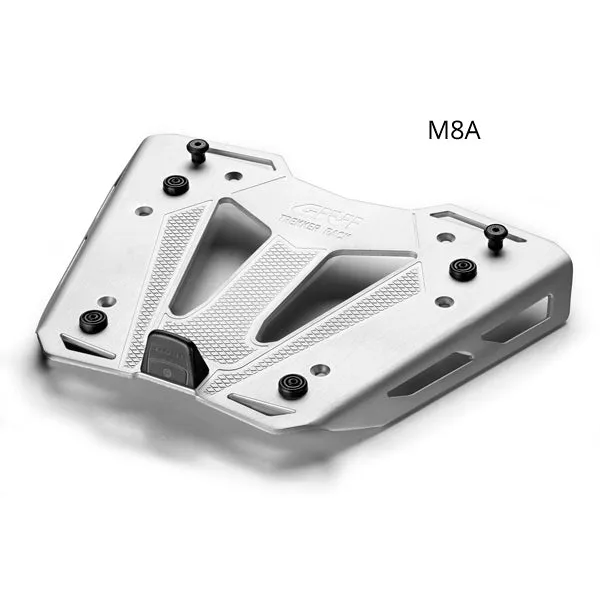

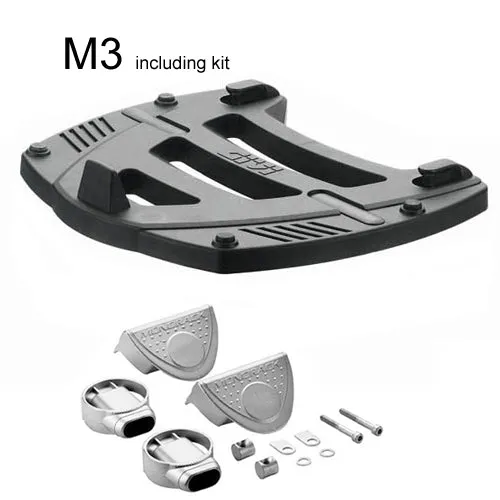

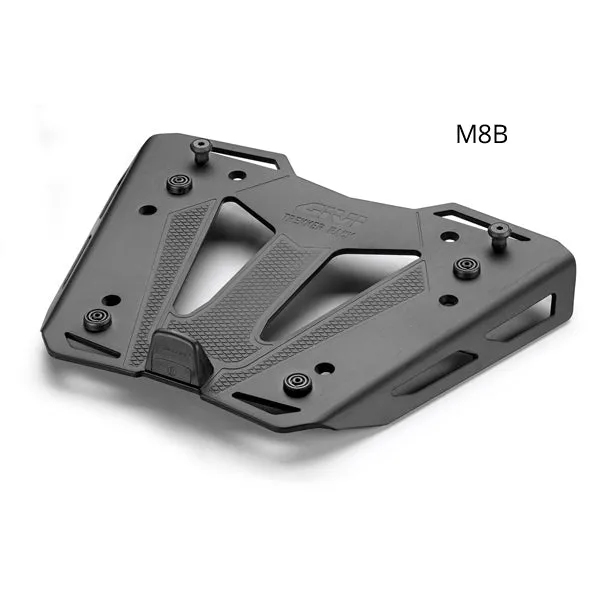

Monokey plate options are: M3 / M5 / M7 / M8A / M8B / M9A / M9B

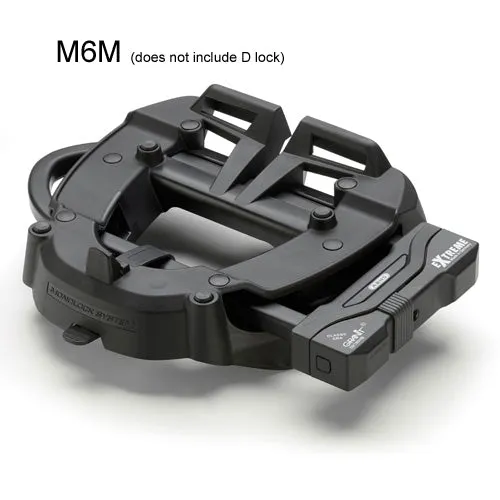

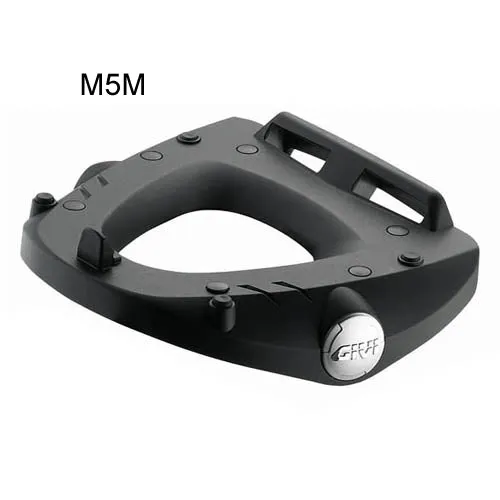

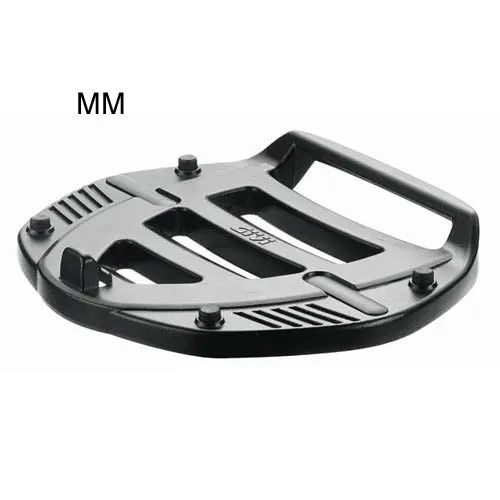

Monolock plate options are: M6M / M5M / MM
| Monokey | Monolock | |||||||||||
| F | FL | SR / FZ | F | SR / FZ | ||||||||
| M3 | M35 | M11 | M5 | M7 | M8A | M8B | M9A | M9B | MM | M6M | M5M | |
| Nylon | Yes | Yes | Yes | Yes | Yes | |||||||
| Aluminium | Black | Silver | Black | Silver | Black | Black | ||||||
| Steel | Black | |||||||||||
| Stop light kit compatible | Yes | Yes | Yes | Yes | Yes | Yes | ||||||
| Remote control kit compatible | Yes | Yes | Yes | Yes | Yes | Yes | ||||||
| Compatible with EX1SRA* | Yes | Yes | Yes | Yes | ||||||||
| Compatible with EX2M** | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | ||||
| Bracket for U shoped padlock | Yes | |||||||||||
| Maximum load | 10 kg | 10kg | 10kg | 6 kg | 6 kg | 6 kg | 6 kg | 3 kg | 3 kg | 3 kg | ||
*EX1SRA - expandable bag holder giving you the option to swap out hard luggage for soft luggage
** EX2M - bag holder giving you the option to swap out hard luggage for soft luggage
Please refer to the in order to get the correct fitments or contact us for help with your bike.

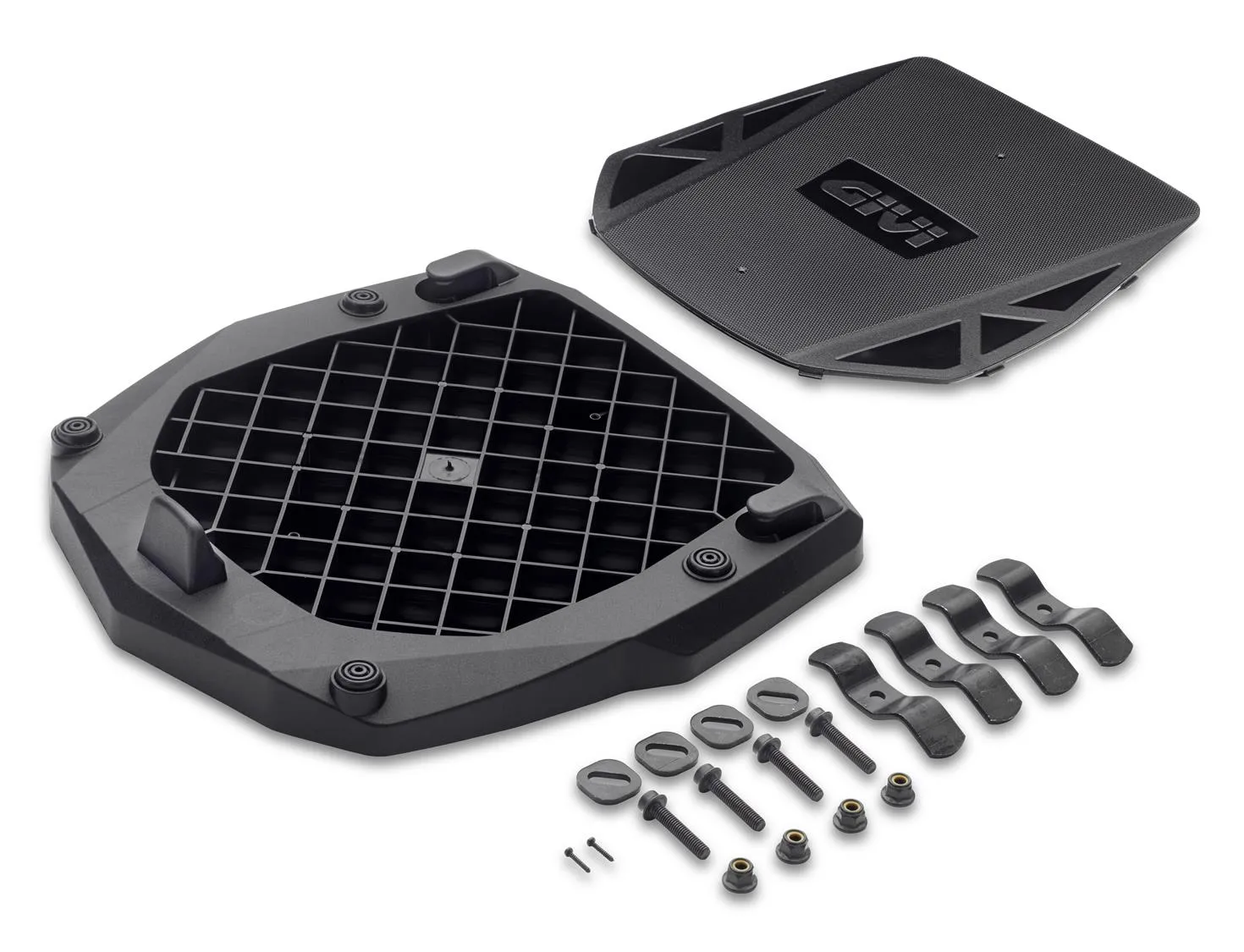

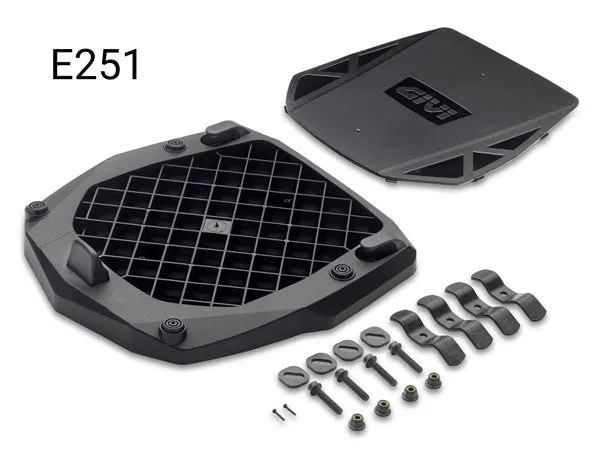

E251
This kit enables you to mount a Monokey top box to a bike’s original rack. It is supplied with screws, “U” shaped couplers, and a plate with a honeycomb structure for easy attachment to the original rack. It can be used with the stop light kit / remote control kit and comes with a covering plate to neatly conceal the honeycomb structure. Max load 10kg.
