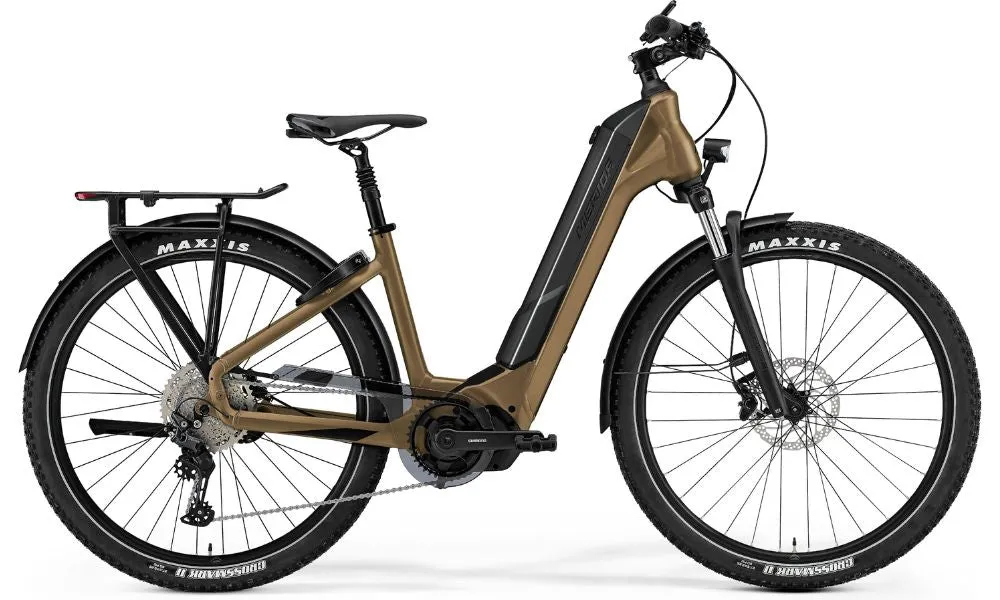

Merida 2025 eSPRESSO CC 575 EQ

Rugged enough for the countryside, tough enough for the city. The eSPRESSO CC 575 EQ pairs the new, powerful Shimano EP6 drive unit with a high-capacity 750 Wh battery that sits in our ENERGY CRADLE frame design. It combines the convenience of an external battery with the looks of an internal battery in order to keep the handling safe and secure. We've also fitted tough 650b wheels with comfortable and grippy high-volume tyres that help take the sting out the bumps, along with a suspension fork and seatpost.

The eSPRESSO CC range is the rugged sibling of the regular eSPRESSO CITY, with wider and grippier high-volume tyres on 650b wheels. While it's happy working hard in the urban jungle thanks to standard-fit mudguards, lights, lock, rack and kickstand, it's also capable of taking trips along forest trails and gravel tracks for fun. Models with the low step-through ENERGY CRADLE frame design come with either 630 Wh or 750 Wh fully-integrated batteries, while a more economical semi-integrated frame comes with a 504 Wh battery. All come with a refined but powerful Shimano STEPS pedal-assist motor, including the sporty EP801 unit on some models. Smooth and comfortable progress is assured with suspension forks on all models, while powerful hydraulic disc brakes allow effortless and controlled stopping. All have a high system weight of 150 kg which means plenty of capacity for rider and luggage.

• New, powerful Shimano EP6 drive unit
• Super low step-through ENERGY CRADLE frame design with internally mounted, high-capacity 750 Wh battery
• Slick Shimano 10-speed drivetrain
• Suspension fork and seat post for comfort and control
• Agile 650b wheels with grippy high-volume tyres
• Fully equipped with guards, lights, lock, rack and kickstand

Specifications

Merida 2025 eSPRESSO CC 575 EQ

Frame

Colour: Matt SParkling Gold
Frame: eSPRESSO CC LITE III; MAT aluminium; 27,5x2,25" max. WHS; 135x9 AST; internal
Fork: Suntour NVX30 DS; Coil; 80 STR; 27,5x2,4" max WHS
Shock: NA

Drivetrain

Crankset: Samox NWP203 ; 38 ATC
Pedals:
Chain: Shimano LG500
Bottom Bracket: NA
Rear Derailleur: Shimano CUES U6000; GS
Front Derailleur: NA
Derailleur Shifter: Shimano CUES U6000-10
Freewheel/Cassette: Shimano LG300; 11-48 ATC; 10 GER

Braking System

Brakes: Shimano MT-200; 2 piston
Brake Levers:

Wheels

Tyres: Maxxis Crossmark II; 27.5x2.25"; wire; reflecting line
Wheels/Rims:
Hubs: [F] Shimano QC300; 100x9 WHF; 32 SPH; Centerlock [R] Shimano QC300; 135x9 WHR; 32 SPH; Centerlock

Other

Handlebar: MERIDA EXPERT; MAT aluminium; 660 WHB; 15 RHB
Stem: MERIDA EXPERT CT; MAT aluminium; 31.8 DSH; adjustable
Saddle: MERIDA EXPERT TK II; V-mount
Seat Post: JD-SP79; 30.9 DSP; 15 SSB; 40 SST

E-Bike

Drive Unit: Shimano EP6; 85Nm
Battery: Trendpower Internal Battery Gen 2; 750Wh
Display: Shimano SC-EN500

Extras

Lights: [F] Herrmans H-Black MR4 E [R] Spanninga Commuter Glow XE integrated in MERIDA MIK HD carrier
Pannier Rack: MERIDA MIK HD Carrier with Spring clip & Spanninga rear light
Fenders: Sunnywheel SW-FA-311-65(MSB)
Kickstand: Atranvelo ED-100-PC

Geometry

Merida 2025 eSPRESSO CC 575 EQ
